Wilo Medana CH1-L 406-2/V/A/10T / 1.1kW Horizontal Multistage Pump
18653

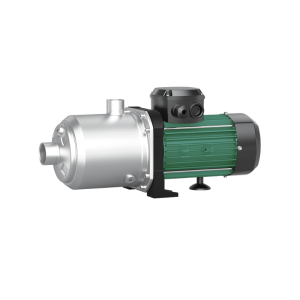

The Wilo Medana CH1-L 406-2/V/A/10T is a horizontal multistage centrifugal pump from the Wilo Medana CH1-L range with a 1.1 kW motor rating. Non-self-priming horizontal multistage pump.
At a glance
Power: 1.1 kWSupply: ±10 %Max. head: 57.3 mMax. flow: 6.4 m³/hConnections: Rp 1Best for: Water distribution and boosting, Irrigation, Industrial processSpecifications
| Brand | Wilo |
| Item code | 4235344 |
| Model | Medana CH1-L 406-2/V/A/10T |
| Series | Wilo Medana CH1-L |
| Type | horizontal multistage centrifugal pump |
| Rated power P2 | 1.1 kW |
| Mains connection | 1~230 V, 50 Hz |
| Min. fluid temperature Tmin | -20 °C |
| Max. fluid temperature Tmax | 90 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Maximum operating pressure PN | 10 bar |
| Pipe connection, suction side DNs | Rp 1 |
| Pipe connection, discharge side DNd | Rp 1 |
| Voltage tolerance | ±10 % |
| Rated power P2 | 1.1 kW |
| Rated current IN | 7.3 A |
| Rated speed n | 2900 1/min |
| Insulation class | F |
| Protection class | IP55 |
| Motor efficiency class | IE2 |
| Pump housing | Stainless steel |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1VGG |
| Gasket material | FKM |
| Stage chamber material | Stainless steel |
| Connection type | Screwed connection inner thread |
| Dimensions (W × L × H) | 26 × 60 × 28 cm |
| Weight | 15.5 kg |
Performance Table
| Flow (m³/h) | 0.4 | 1 | 2 | 3 | 4 | 5 | 6 | 6.4 |
|---|---|---|---|---|---|---|---|---|
| Head (m) | 57.3 | 55.5 | 52 | 47.4 | 40.7 | 30.4 | 16.3 | 10.5 |
| Shaft power P2 (kW) | 0.39 | 0.48 | 0.62 | 0.72 | 0.78 | 0.79 | 0.77 | 0.75 |
| Hydraulic efficiency (%) | 19 | 35 | 49 | 57 | 59 | 54 | 36 | 25 |
| NPSH required (m) | 0.88 | 0.77 | 0.88 | 1.3 | 1.95 | 2.83 | 4.42 | 5.3 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Medana CH1-L 406-2/V/A/10T:
Wilo Medana CH1-L 406 Performance Curve (50 Hz)
30 kB | Download
Applications
- Water distribution and boosting
- Irrigation
- Industrial process
Features
- High efficiency thanks to high hydraulic output
- Quick and easy commissioning/maintenance thanks to large openings for filling and draining pumps
- Highly reliable and robust with low noise emissions thanks to neck ring and corrosion-resistant lantern with cataphoretic coating
- Suitable for use in ambient temperatures of up to 50 °C and expanded field of application especially for system integration
- Suitable for drinking water applications
- Compliant to UL certificate
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 461.3 mm |
| Width W | 185 mm |
| Height H | 206.3 mm |
| Net weight (approx.) | 14 kg |
| Gross weight (approx.) | 15.5 kg |
| Length with packaging | 600 mm |
| Width with packaging | 260 mm |
| Height with packaging | 280 mm |
