Wilo Medana CH1-L 406-1/E/A/10T / 1.1kW Horizontal Multistage Pump

R 11,456.87 incl. VATAdd to Basket

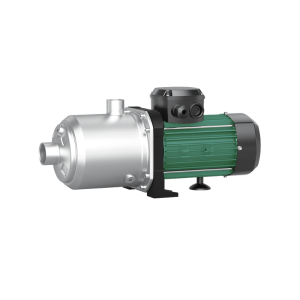

Wilo Medana CH1-L 406-1/E/A/10T / 1.1kW Horizontal Multistage Pump image 1

The Wilo Medana CH1-L 406-1/E/A/10T is a horizontal multistage centrifugal pump from the Wilo Medana CH1-L range with a 1.1 kW motor rating. Non-self-priming horizontal multistage pump.

At a glance

Power: 1.1 kWSupply: ±10 %Max. head: 57.3 mMax. flow: 6.4 m³/hConnections: Rp 1Best for: Water distribution and boosting, Irrigation, Industrial process

Specifications

BrandWilo
Item code4231482
ModelMedana CH1-L 406-1/E/A/10T
SeriesWilo Medana CH1-L
Typehorizontal multistage centrifugal pump
Rated power P21.1 kW
Mains connection1~230 V, 50 Hz
Min. fluid temperature Tmin-20 °C
Max. fluid temperature Tmax120 °C
Min. ambient temperature Tmin-15 °C
Max. ambient temperature Tmax50 °C
Maximum operating pressure PN10 bar
Pipe connection, suction side DNsRp 1
Pipe connection, discharge side DNdRp 1
Voltage tolerance±10 %
Rated power P21.1 kW
Rated current IN7.3 A
Rated speed n2900 1/min
Insulation classF
Protection classIP55
Motor efficiency classIE2
Pump housingStainless steel
ImpellerStainless steel
ShaftStainless steel
Shaft sealBQ1EGG
Gasket materialEPDM
Stage chamber materialStainless steel
Connection typeScrewed connection inner thread
Dimensions (W × L × H)26 × 60 × 28 cm
Weight15.5 kg

Performance Table

Flow (m³/h)0.41234566.4
Head (m)57.355.55247.440.730.416.310.5
Shaft power P2 (kW)0.390.480.620.720.780.790.770.75
Hydraulic efficiency (%)1935495759543625
NPSH required (m)0.880.770.881.31.952.834.425.3

Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.

Performance Curves and Technical Data (PDF)

Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Medana CH1-L 406-1/E/A/10T:



Wilo Medana CH1-L 406 Performance Curve (50 Hz)

30 kB  |  Download

Applications

  • Water distribution and boosting
  • Irrigation
  • Industrial process

Features

  • High efficiency thanks to high hydraulic output
  • Quick and easy commissioning/maintenance thanks to large openings for filling and draining pumps
  • Highly reliable and robust with low noise emissions thanks to neck ring and corrosion-resistant lantern with cataphoretic coating
  • Suitable for use in ambient temperatures of up to 50 °C and expanded field of application especially for system integration
  • Suitable for drinking water applications
  • Compliant to UL certificate

Dimensions & Weight

DimensionValue
Length L461.3 mm
Width W185 mm
Height H206.3 mm
Net weight (approx.)14 kg
Gross weight (approx.)15.5 kg
Length with packaging600 mm
Width with packaging260 mm
Height with packaging280 mm

Need help choosing or want a price?

Our pump team will check the right size for your flow and head and give you a quote.

WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za

Frequently Asked Questions

What is the maximum head of the Wilo Medana CH1-L 406-1/E/A/10T?

The Wilo Medana CH1-L 406-1/E/A/10T has a maximum head of 57.3 m.

How much water can the Wilo Medana CH1-L 406-1/E/A/10T pump?

The Wilo Medana CH1-L 406-1/E/A/10T pumps up to 6.4 m³/h.

What power supply does the Wilo Medana CH1-L 406-1/E/A/10T need?

Supply: ±10 %. Motor power: 1.1 kW.

What are the pipe connections of the Wilo Medana CH1-L 406-1/E/A/10T?

Rp 1.
