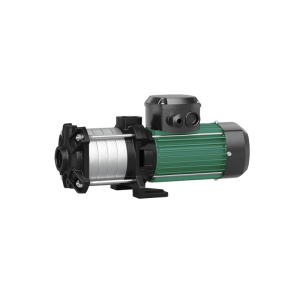

Wilo Medana CH1-LC 406-5/E/A/10T / 1.1kW Horizontal Multistage Pump
18725
The Wilo Medana CH1-LC 406-5/E/A/10T is a horizontal multistage centrifugal pump from the Wilo Medana CH1-LC range with a 1.1 kW motor rating. Non-self-priming horizontal multistage pump.
At a glance
Power: 1.1 kWSupply: ±10 %Max. head: 54.8 mMax. flow: 6.4 m³/hConnections: 6 barBest for: Irrigation, Industrial processSpecifications
| Brand | Wilo |
| Item code | 4233374 |
| Model | Medana CH1-LC 406-5/E/A/10T |
| Series | Wilo Medana CH1-LC |
| Type | horizontal multistage centrifugal pump |
| Rated power P2 | 1.1 kW |
| Mains connection | 1~230 V, 50 Hz |
| Maximum inlet pressure p inl | 6 bar |
| Maximum operating pressure PN | 10 bar |
| Min. fluid temperature Tmin | -20 °C |
| Max. fluid temperature Tmax | 90 °C |
| Min. ambient temperature Tmin | -15 °C |
| Max. ambient temperature Tmax | 50 °C |
| Connection type | Screwed connection inner thread |
| Pipe connection, suction side DNs | Rp 1 |
| Pipe connection, discharge side DNd | Rp 1 |
| Voltage tolerance | ±10 % |
| Rated power P2 | 1.1 kW |
| Rated current IN | 7.3 A |
| Rated speed n | 2900 1/min |
| Insulation class | F |
| Protection class | IP55 |
| Motor efficiency class | IE2 |
| Pump housing | 5.1301/EN-GJL-250 KTL-coated |
| Impeller | Stainless steel |
| Shaft | Stainless steel |
| Shaft seal | BQ1EGG |
| Gasket material | EPDM |
| Stage chamber material | Stainless steel |
| Dimensions (W × L × H) | 26 × 60 × 28 cm |
| Weight | 18.1 kg |
Performance Table
| Flow (m³/h) | 0.4 | 1 | 2 | 3 | 4 | 5 | 6 | 6.4 |
|---|---|---|---|---|---|---|---|---|
| Head (m) | 54.8 | 53.1 | 49.7 | 45.4 | 39 | 29.4 | 16.4 | 10.8 |
| Shaft power P2 (kW) | 0.41 | 0.5 | 0.63 | 0.73 | 0.79 | 0.8 | 0.77 | 0.75 |
| Hydraulic efficiency (%) | 17 | 32 | 45 | 53 | 56 | 52 | 36 | 26 |
| NPSH required (m) | 0.88 | 0.77 | 0.88 | 1.3 | 1.95 | 2.83 | 4.42 | 5.3 |
Head at each flow rate from the manufacturer's technical data. For a duty-point check use the Get a Quote wizard below.
Performance Curves and Technical Data (PDF)
Download the curve sheet with the performance curves, dimensions and technical data for the Wilo Medana CH1-LC 406-5/E/A/10T:
Wilo Medana CH1-LC.406 Performance Curve (50 Hz)
30 kB | Download
Applications
- Irrigation
- Industrial process
Features
- High efficiency thanks to high hydraulic output
- Highly reliable and robust with low noise emissions thanks to neck ring and corrosion-resistant lantern with cataphoretic coating
- Suitable for use in ambient temperatures of up to 50 °C – which means an expanded field of application especially for system integration
- Compliant to UL certificate
Dimensions & Weight
| Dimension | Value |
|---|---|
| Length L | 452 mm |
| Width W | 179.5 mm |
| Height H | 196 mm |
| Net weight (approx.) | 16.1 kg |
| Gross weight (approx.) | 18.1 kg |
| Length with packaging | 600 mm |
| Width with packaging | 260 mm |
| Height with packaging | 280 mm |
Need help choosing or want a price?
Our pump team will check the right size for your flow and head and give you a quote.
WhatsApp us: 082 516 2248 Get a Quote / Size my pump info@pumps.co.za
