Wilo Helix V

Wilo Helix V

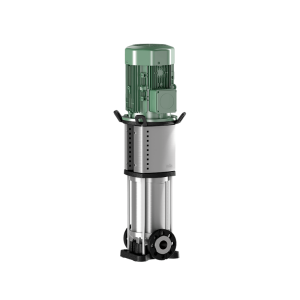

Non-self-priming, high-efficiency multistage highpressure centrifugal pump in vertical design with in-line connections. Applications: Water supply and pressure boosting Industrial circulation systems Process water Closed cooling circuits Fire extinguishing systems Washing systems Irrigation.

Efficiency-optimised, laser-welded 2D/3D hydraulics, flow and degassing optimised
Corrosion-resistant impellers, guide vanes and stage housings
Flow and NPSH-optimised pump housing
Maintenance-friendly design with particularly robust coupling guard
Drinking water approval for pumps with parts that come in contact with the fluid made of stainless steel (EPDM version)

Scope of delivery: Helix V high-pressure multistage centrifugal pump; Installation and operating instructions; Helix V 2 – 16 (version PN16 with oval flanges): Cast iron counter flanges with the corresponding screws, nuts and gaskets.

Select the model by the duty point (flow and head) of your installation and check the motor rating, connection size and mains supply against the specification table on each product page.

Models in this category

Helix V 204-1/16/E/S/400-50 – 0.37 kW – R 19 035.71
Helix V 207-1/16/E/S/400-50 – 0.55 kW – R 21 050.00
Helix V 210-1/16/E/S/400-50 – 0.75 kW – R 22 450.00
Helix V 212-1/16/E/S/400-50 – 1.12 kW – R 23 435.71
Helix V 214-1/16/E/S/400-50 – 1.12 kW – R 24 700.00
Helix V 218-1/16/E/S/400-50 – 1.5 kW – R 28 892.85
Helix V 220-1/16/E/S/400-50 – 2.2 kW – R 30 285.71
Helix V 207-2/25/V/KS/400-50 – 0.55 kW – R 28 014.28
Helix V 210-2/25/V/KS/400-50 – 0.75 kW – R 30 464.28
Helix V 212-2/25/V/KS/400-50 – 1.1 kW – R 32 007.14
Helix V 216-2/25/V/KS/400-50 – 1.5 kW – R 38 850.00
Helix V 218-2/25/V/KS/400-50 – 1.5 kW – R 42 528.57
Helix V 403-1/16/E/S/400-50 – 0.37 kW – R 18 607.14
Helix V 404-1/16/E/S/400-50 – 0.55 kW – R 19 121.42
Helix V 406-1/16/E/S/400-50 – 0.75 kW – R 20 664.28
Helix V 409-1/16/E/S/400-50 – 1.1 kW – R 22 064.28
Helix V 412-1/16/E/S/400-50 – 1.5 kW – R 24 821.42
Helix V 414-1/16/E/S/400-50 – 2.2 kW – R 26 535.71
Helix V 418-1/16/E/S/400-50 – 2.2 kW – R 29 235.71
Helix V 420-1/16/E/S/400-50 – 3 kW – R 33 007.14
Helix V 406-2/25/V/KS/400-50 – 0.75 kW – R 27 821.42
Helix V 409-2/25/V/KS/400-50 – 1.1 kW – R 29 800.00
Helix V 412-2/25/V/KS/400-50 – 1.5 kW – R 33 357.14
Helix V 414-2/25/V/KS/400-50 – 2.2 kW – R 36 857.14
Helix V 418-2/25/V/KS/400-50 – 2.2 kW – R 42 992.85
Helix V 424-2/25/V/KS/400-50 – 3 kW – R 46 471.42
Helix V 603-1/16/E/S/400-50 – 0.55 kW – R 19 507.14
Helix V 604-1/16/E/S/400-50 – 0.75 kW – R 20 600.00
Helix V 606-1/16/E/S/400-50 – 1.1 kW – R 21 942.85
Helix V 608-1/16/E/S/400-50 – 1.5 kW – R 24 692.85
Helix V 611-1/16/E/S/400-50 – 2.2 kW – R 28 121.42
Helix V 613-1/16/E/S/400-50 – 3 kW – R 32 050.00
Helix V 615-1/16/E/S/400-50 – 3 kW – R 33 492.85
Helix V 620-1/25/E/KS/400-50 – 4 kW – R 44 492.85
Helix V 623-1/25/E/KS/400-50 – 5.5 kW – R 54 742.85
Helix V 627-1/25/E/KS/400-50 – 5.5 kW – R 57 407.14
Helix V 606-2/25/V/KS/400-50 – 1.1 kW – R 28 278.57
Helix V 608-2/25/V/KS/400-50 – 1.5 kW – R 31 564.28
Helix V 611-2/25/V/KS/400-50 – 2.2 kW – R 38 235.71
Helix V 613-2/25/V/KS/400-50 – 3 kW – R 41 028.57
Helix V 615-2/25/V/KS/400-50 – 3 kW – R 44 600.00
Helix V 618-2/25/V/KS/400-50 – 4 kW – R 47 421.42
Helix V 616-1/16/E/S/400-50 – 4 kW – R 35 014.28
Helix V 1002-1/16/E/S/400-50 – 0.75 kW – R 19 850.00
Helix V 1003-1/16/E/S/400-50 – 1.1 kW – R 20 650.00
Helix V 1004-1/16/E/S/400-50 – 1.5 kW – R 23 007.14
Helix V 1006-1/16/E/S/400-50 – 2.2 kW – R 24 728.57
Helix V 1008-1/16/E/S/400-50 – 3 kW – R 27 935.71
Helix V 1011-1/16/E/S/400-50 – 4 kW – R 33 321.42
Helix V 1013-1/16/E/S/400-50 – 5.5 kW – R 37 257.14
Helix V 1015-1/25/E/KS/400-50 – 5.5 kW – R 41 835.71
Helix V 1021-1/25/E/KS/400-50 – 7.5 kW – R 59 935.71
Helix V 1004-2/25/V/KS/400-50 – 1.5 kW – R 28 978.57
Helix V 1006-2/25/V/KS/400-50 – 2.2 kW – R 31 199.99
Helix V 1008-2/25/V/KS/400-50 – 3 kW – R 35 207.14
Helix V 1011-2/25/V/KS/400-50 – 4 kW – R 41 442.85
Helix V 1015-2/25/V/KS/400-50 – 5.5 kW – R 48 828.57
Helix V 1602-1/16/E/S/400-50 – 1.5 kW – R 21 885.71
Helix V 1603-1/16/E/S/400-50 – 2.2 kW – R 23 171.42
Helix V 1604-1/16/E/S/400-50 – 3 kW – R 25 814.28
Helix V 1606-1/16/E/S/400-50 – 4 kW – R 28 785.71
Helix V 1608-1/16/E/S/400-50 – 5.5 kW – R 34 385.71
Helix V 1611-1/25/E/KS/400-50 – 7.5 kW – R 49 635.71
Helix V 1613-1/25/E/KS/400-50 – 9 kW – R 57 285.71
Helix V 1616-1/25/E/KS/400-50 – 11 kW – R 64 357.14
Helix V 2201-1/16/E/KS/400-50 – 1.5 kW – R 35 992.85
Helix V 2202-1/16/E/KS/400-50 – 3 kW – R 38 442.85
Helix V 2203-1/16/E/KS/400-50 – 4 kW – R 41 828.57
Helix V 2204-1/16/E/KS/400-50 – 5.5 kW – R 46 428.57
Helix V 2206-1/16/E/KS/400-50 – 7.5 kW – R 58 878.57
Helix V 2207-1/16/E/KS/400-50 – 9 kW – R 62 471.42
Helix V 2209-1/25/E/KS/400-50 – 11 kW – R 66 507.14
Helix V 2212-1/25/E/KS/400-50 – 15 kW – R 88 692.85
Helix V 2213-1/25/E/KS/400-50 – 18.5 kW – R 92 242.85
Helix V 3601-1/16/E/KS/400-50 – 3 kW – R 39 885.71
Helix V 3602-1/16/E/KS/400-50 – 5.5 kW – R 47 378.57
Helix V 3603-1/16/E/KS/400-50 – 9 kW – R 61 357.14
Helix V 3604-1/16/E/KS/400-50 – 11 kW – R 64 478.57
Helix V 3605-1/16/E/KS/400-50 – 15 kW – R 80 957.14
Helix V 3606-1/16/E/KS/400-50 – 18.5 kW – R 88 492.85
Helix V 3607-1/25/E/KS/400-50 – 22 kW – R 97 528.57
Helix V 3608-1/25/E/KS/400-50 – 22 kW – R 101 207.14
Helix V 3609-1/25/E/KS/400-50 – 30 kW – R 124 592.85
Helix V 5201-1/16/E/KS/400-50 – 4 kW – R 44 821.42
Helix V 5202-1/16/E/KS/400-50 – 7.5 kW – R 61 242.85
Helix V 5203-1/16/E/KS/400-50 – 11 kW – R 67 457.14
Helix V 5204-1/16/E/KS/400-50 – 15 kW – R 87 371.42
Helix V 5205-1/16/E/KS/400-50 – 18.5 kW – R 94 707.14
Helix V 5206-1/25/E/KS/400-50 – 22 kW – R 104 750.00
Helix V 5207-1/25/E/KS/400-50 – 30 kW – R 127 935.71
Helix V 5208-1/25/E/KS/400-50 – 30 kW – R 135 571.42
Helix V 5209-2/30/V/KS/400-50 – 37 kW – R 204 750.00
Helix V 5210-2/30/V/KS/400-50 – 37 kW – R 210 464.28

Prices include VAT and run from R 18 607.14 to R 210 464.28.
